The panoramic sunroof fitted to VW, Tiguan, Audi Q5, Skoda Yeti and many other models of the aforementioned brands is subject to a number of recurring problems, which I’m going to try to resolve in the most efficient and cost-effective way possible.

There are 5 recurring problems (not exhaustive):

  • water infiltration.
  • locking the sunroof.
  • sunroof blinds loose, worn or broken.
  • the movement of the sunroof does not correspond to demand.
  • damaged sunroof net.

1 Water infiltration.

Of all the recurring problems with the panoramic sunroof, this is undoubtedly one of the most annoying. To solve the problem that’s turning your vehicle into a swimming pool, you need to pinpoint its location and determine the cause. Water infiltration is a fairly complex problem, as it can have a number of different causes:

Cracked, broken sunroof frame.

In this case, the best thing to do is to change the sunroof frame. The maneuver is complicated and costly, but it’s largely doable with the right methodology, and if the opportunity arises I’ll be sure to put together a tutorial for the job.

The drain pipes are clogged.

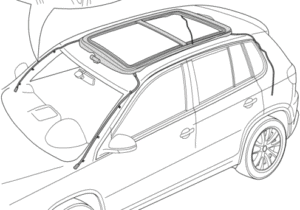

Drainage hoses | recurring problems with panoramic sunroof
Drain pipes

In this case, a simple unclogging is all that’s needed. You can find the procedure by clicking >>. <<

Pipes are worn.

All you have to do is replace the old pipes with new ones. The method is >>. <<

The pipe is pulled out of the sleeve at the water outlet.

Depending on the model, behind the wheel arch at the rear, and behind the left-hand jar at the front for the Tiguan, for example.

The joints are showing signs of fatigue.

Water infiltration | recurring problems with the panoramic sunroof
outer seal (4), inner seal (1)

Exterior or interior, just change them if the opportunity arises, I’ll do a tutorial.

2 The problem of locking the sunroof.

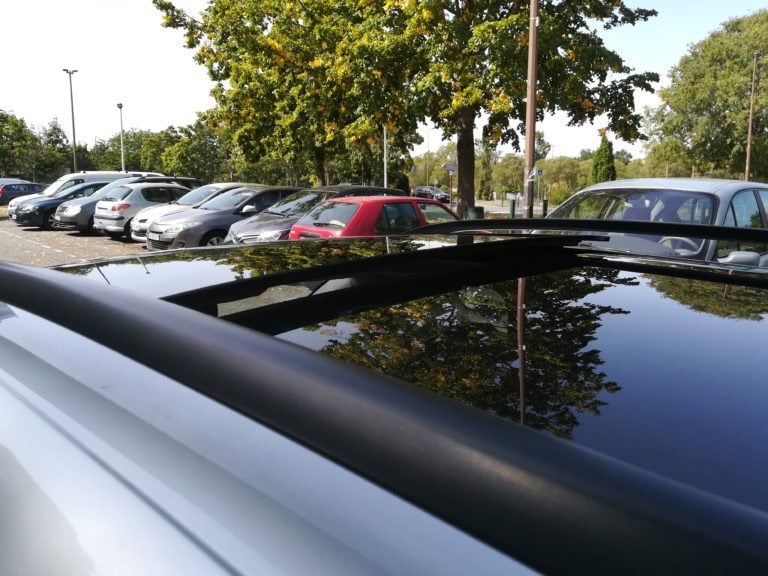

Leaf position | recurring problems with the panoramic sunroof
leaf position

A reset can solve the problem by performing the operation >>here<<.

Panoramic sunroof doesn’t close, sunroof jerks.

At the very end of the cycle, it may be in a beating position, at which point you can try greasing as I explain in this article.

Professional greases are available here for efficient lubrication:

Belleville Grizzli Grease 400g
Belleville Grizzli Grease 700g
Grizzli syringe for grease 20ml

3 Sunroof blinds loose, worn, broken.

Broken sunroof blind | recurring problems with the panoramic sunroof
Relaxed sunroof blind

You can change it by following the procedure I provide here.
I will update it regularly with your comments as far as possible.

4 The sunroof encounters a problem during movement.

Panoramic sunroof presentation | recurring problems with the panoramic sunroof
Panoramic sunroof

The motor may be lost and no longer know its reference positions (closed, open).
In this case, resetting is effective in many cases, but sometimes it’s not enough to solve the problem.
To this must be added manual operation of the blind to bring it into the closed position for handling.
the awning’s manual drive is located directly on the motor.
Find out how here.

Professional greases are available here for efficient lubrication:

Belleville Grizzli Grease 400g
Belleville Grizzli Grease 700g
Grizzli syringe for grease 20ml

5 Sunroof net damaged.

The sunroof net | recurring problems with the panoramic sunroof
deflector

You can read the article I wrote on this subject by clicking >>here<<.


If you have any questions or beneficial comments that everyone could benefit from then please contact us.
A contact page is dedicated to this here
